Spruce wood shafting has a long tradition and a rich history in arrow making because it has excellent flight properties. This type of wooden shaft is particularly light in mass weight but it recovers quickly from the shot. Thus, the spruce wood stock is particularly suitable for use in 3D tournaments and for normal informal target shooting as well. Due to the lower arrow mass weight you get faster arrow speeds and flatter trajectories for more accurate shooting and, because of its excellent grain structure and inherent straightness, spruce wood shafts provide the perfect foundation for making the best wooden arrows.
Natural product
Because wood is a natural product, the wooden shafts differ from each other, in inner and outer characteristics mostly but but barely in diameter. For example, not all shafts are equally as straight, or stiff or heavy. The spine size is also not always the same, because of this wooden shafts are classified and sorted into categories with a margin of 5 lbs. To produce as many equal shafts all shafts are spined, checked on tears and breaks and aligned by hand.
Tailor-made
We deliver shafts in full length, 32 inch. For many people this is to long and the shaft will have to be shortened. For a small fee of €0,10 per shaft we will shorten your shafts to you desired length. We use a special sawing machine where we can be accurate to the millimeter.
For even better shooting results, we can sort the shafts by weight within a margin of one gram. We do this in groups of maximum 12 shafts. If you want more, we will divide it into groups whose weights are as close as possible to each other.
Specifications Spruce Wooden Shaft:
Diameter: 5/16 inch
Length: 32 inch (full length)
Available spines: 25-30 LBS, 30-35 LBS, 35-40 LBS, 40-45 LBS, 45-50 LBS, 50-55 LBS and 55-60 LBS
Spruce wood shafting has a long tradition and a rich history in arrow making because it has excellent flight properties. This type of wooden shaft is particularly light in mass weight but it recovers quickly from the shot. Thus, the spruce wood stock is particularly suitable for use in 3D tournaments and for normal informal target shooting as well. Due to the lower arrow mass weight you get faster arrow speeds and flatter trajectories for more accurate shooting and, because of its excellent grain structure and inherent straightness, spruce wood shafts provide the perfect foundation for making the best wooden arrows.
Natural product
Because wood is a natural product, the wooden shafts differ from each other, in inner and outer characteristics mostly but but barely in diameter. For example, not all shafts are equally as straight, or stiff or heavy. The spine size is also not always the same, because of this wooden shafts are classified and sorted into categories with a margin of 5 lbs. To produce as many equal shafts all shafts are spined, checked on tears and breaks and aligned by hand.
Tailor-made
We deliver shafts in full length, 32 inch. For many people this is to long and the shaft will have to be shortened. For a small fee of €0,10 per shaft we will shorten your shafts to you desired length. We use a special sawing machine where we can be accurate to the millimeter.For even better shooting results, we can sort the shafts by weight within a margin of one gram. We do this in groups of maximum 12 shafts. If you want more, we will divide it into groups whose weights are as close as possible to each other.
Specifications Spruce Wooden Shaft:
Diameter: 11/32
Length: 32 inch (full length)
Available spines: 40-45 LBS, 45-50 LBS, 50-55 LBS en 55-60 LBS, 60-65 LBS, 65-70 LBS, 70-75 LBS and 75-80 LBS
Cedar shafts of the highest quality, Port Orford cedar has always the preference of many traditional top archers. There is no wooden shaft that can measure up to the qualities of Port Orford cedar. They are strong, elastic and have the perfect weight/spine ratio.
Features
Sizes: 5/16 or 11/32
Length: 30 inch
Natural productBecause wood is a natural product, the wooden shafts differ from each other, in inner and outer characteristics mostly but but barely in diameter. For example, not all shafts are equally as straight, or stiff or heavy. The spine size is also not always the same, because of this wooden shafts are classified and sorted into categories with a margin of 5 lbs. To produce as many equal shafts all shafts are spined, checked on tears and breaks and aligned by hand.
Tailor-madeWe deliver shafts in full length, 30 inch. For many people this is to long and the shaft will have to be shortened. For a small fee of €0,10 per shaft we will shorten your shafts to you desired length. We use a special sawing machine where we can be accurate to the millimeter.
For even better shooting results, we can sort the shafts by weight within a margin of one gram. We do this in groups of maximum 12 shafts. If you want more, we will divide it into groups whose weights are as close as possible to each other.
Northern Pine is one of the oldest types of wood that is used to produce arrows. Even this day Northern Pine is used by many archers because of the good balance between stability and weight. Northern Pine is very robust and a bit heavier then for instance Cedar, it is also a type of wood that is very easy to stain or lacquer.
Natural productBecause wood is a natural product, the wooden shafts differ from each other, in inner and outer characteristics mostly but but barely in diameter. For example, not all shafts are equally as straight, or stiff or heavy. The spine size is also not always the same, because of this wooden shafts are classified and sorted into categories with a margin of 5 lbs. To produce as many equal shafts all shafts are spined, checked on tears and breaks and aligned by hand.
Tailor-madeWe deliver shafts in full length, 32 inch. For many people this is to long and the shaft will have to be shortened. For a small fee of €0,10 per shaft we will shorten your shafts to you desired length. We use a special sawing machine where we can be accurate to the millimeter.
For even better shooting results, we can sort the shafts by weight within a margin of one gram. We do this in groups of maximum 12 shafts. If you want more, we will divide it into groups whose weights are as close as possible to each other.
Specifications:
Diameter: 5/16 and 11/32Length: 32 inch (full length)Available spines:5/16: 25-30 LBS, 30-35 LBS, 35-40 LBS, 40-45 LBS, 45-50 LBS11/32: 40-45 LBS, 45-50 LBS, 50-55 LBS, 55-60 LBS, 60-65 LBS, 65-70 LBS
Cedar shafts of the highest quality, Port Orford cedar has always the preference of many traditional top archers. There is no wooden shaft that can measure up to the qualities of Port Orford cedar. They are strong, elastic and have the perfect weight/spine ratio.
Features
Sizes: 5/16 or 11/32
Length: 32 inch
Natural productBecause wood is a natural product, the wooden shafts differ from each other, in inner and outer characteristics mostly but but barely in diameter. For example, not all shafts are equally as straight, or stiff or heavy. The spine size is also not always the same, because of this wooden shafts are classified and sorted into categories with a margin of 5 lbs. To produce as many equal shafts all shafts are spined, checked on tears and breaks and aligned by hand.
Tailor-madeWe deliver shafts in full length, 32 inch. For many people this is to long and the shaft will have to be shortened. For a small fee of €0,10 per shaft we will shorten your shafts to you desired length. We use a special sawing machine where we can be accurate to the millimeter.
For even better shooting results, we can sort the shafts by weight within a margin of one gram. We do this in groups of maximum 12 shafts. If you want more, we will divide it into groups whose weights are as close as possible to each other.
Together with our manufacturing partner, we have achieved the perfect combination of precision, quality, and price with our Penthalon Bandit carbon shafts. The tolerances for the spine values and the mass weight of this great carbon shaft are very tight! The Penthalon Bandit also scores impressively well in durability!
In addition, we were able to produce the lighter spine values of 800, 900 and 1000 even in this thicker .245 Easton standard internal diameter. No other manufacturer has them!
This is great news for archers who have been having a hard time finding suitable carbon arrows for their lighter bows. In the lower spines, these carbon shafts are a perfect match for bows with lower draw weights. And for those archers with long draw lengths, all of the Penthalon Bandit carbon arrows are a full 32 inches long!
The Penthalon Bandit is an impressive carbon arrow in every way and the best deal you will find on carbon arrows of this quality anywhere!
Available Spine Weights: 350, 400, 500, 600, 700, 800, 900 and 1000
Length: 32“
ID: Easton Standard, .245“
Quality: 100% Carbon
Color: Black Carbon
Delivery: Carbon shaft only (nocks, inserts, and points must be ordered separately)
Spine
Shaft length
Weight in Grain/Inch
Protector ring
350
32″
8,0
7.45
400
32″
7,3
7.45
500
32″
7,0
7.30
600
32″
5,8
7.30
700
32″
4,9
7.15
800
32″
4,5
7.00
900
32″
4,2
6.90
1000
32″
4,0
6.90
Entry level carbon shafts for Compound or 3D shooters. With a length of 33inch perfect for shooters with a long draw length. Inserts and nocks (Skylon S-size) are included but not installed.Specifications Skylon Carbon Edge Shafts:
Material: Full catbonFull length: 33inch
Straightness: +/- .005"
Nock: Large groove nock (S-size)
Insert: .245 (S-size)
Spine
Outer Diameter
Grain per inch
Shaft length
800
6.85mm
4.20
33 inch
700
7.00mm
5.12
33 inch
600
7.05mm
5.58
33 inch
500
7.12mm
5.80
33 inch
400
7.35mm
7.33
33 inch
350
7.39mm
7.61
33 inch
300
7.55mm
8.50
33 inch
he Penthalon Traditional Black is a qualitative carbon shaft of Bearpaw. All products of Bearpaw’s Traditional range are designed to maximize fun and get the most out of your arrow, with a focus on high quality and reliability.
An absolute keeper with great value for money!
Features
Available spine sizes: 350, 400, 500, 600 en 800
Straightness: +/- 006
Quality: 100% Carbon
Color: Carbon black
Delivery includes: Carbon shaft (nocks, insert and points can be ordered seperately)
Specifications
Spine
Weight(Grain per inch)
max. length(in inch)
Ø outside diameter(in inch)
Ø interior diameter(in inch)
350
9,7
32.0
0.299
0.245
400
9,17
32.0
0.296
0.245
500
7,8
32.0
0.287
0.245
600
6.8
32.0
0.285
0.245
800
6,1
32.0
0.279
0.245
The look of a wooden arrow and the strength of a carbon shaft, the Gold Tip Traditional shaft combines both. Gold Tip demonstrated with this bow that performance and a beautiful wood print are perfect together. This shaft has been around for a couple of years but is still very popular with a growing amount of traditional archers.
Comes with:
GT Nock
Accu-lite insert
Specifications Gold Tip Traditional Shafts:
Spine
GPI
Max Length
Inner Diameter
340 (.340″)
10.5
32″
.246″
400 (.400″)
9.3
32″
.246″
500 (.500″)
8.6
32″
.246″
600 (.600″)
7.8
30″
.246″
These Skylon shafts may look like wooden shafts, but they are in fact carbon shafts. The relatively low weight of these shafts facilitates a high arrow speed and the .244" inner diameter is quite common, making it easy to find parts. Inserts and nocks are included, so you only have to add feathers and points to make them complete. These shafts come standard at 33 inches, making them suitable for longer draw lengths as well. We'll gladly shorten them for you as well.
Specifications Skylon Bentwood:
Full length: 33 inch
Point size: 5/16 (300, 350 &400 spine) 9/32 (500-800 spine)(not included)
Material: 24-TON Carbon
ID: 6.2mm / .244" (S size)
Straightness: .005"
Insert an nock included
SPINE
OUTSIDE DIAMETER
GRAIN PER INCH
LENGTH
0.800"
7.00mm
5.40
33"
0.700"
7.10mm
5.70
33"
0.600"
7.17mm
5.87
33"
0.500"
7.36mm
7.25
33"
0.400"
7.40mm
7.73
33"
0.350"
7.43mm
7.89
33"
0.300"
7.70mm
9.68
33"

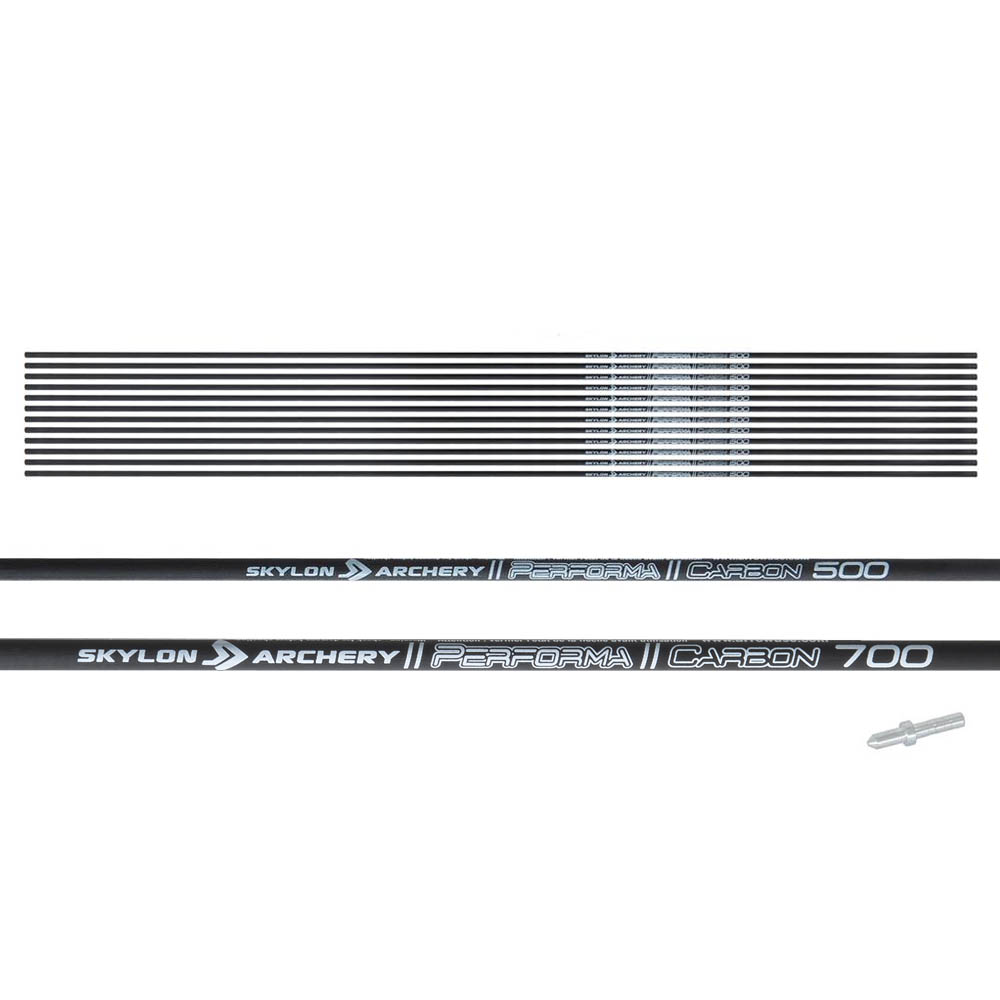

This carbon 'g-size' shaft by Skylon with an innerdiameter of 4.2mm are perfect archers looking for an affortable shaft but who value precision and straightness! These shafts can be ordered in any spine up to 32 inches, so that you will not run into the limit of the arrow even with lighter draw weights and longer draw lengths. We can cut these shafts to size for you, giving you the perfect length to shoot with a clicker. The arrows come with a pin insert, on which you can place a pin nock. The pin will ensure that you have less chance of damaging the arrow with a small group.Specifications Skylon Carbon Brixxon Shaft:
Spines: 1100, 900, 850, 800, 750, 700, 650, 600, 550, 500, 450, 400
Innerdiameter: 4.2mm
Material: 24-ton carbon
Pin insert included
Straightness: ±0.0015"
SPINE
OUTSIDE DIAMETER
GRAIN PER INCH
LENGTH
RECOMMENDED POINT
1.100"
5.22mm
4.64
32"
60-70-80gr
1.000"
5.32mm
4.90
32"
60-70-80gr
0.900"
5.36mm
5.34
32"
60-70-80gr
0.850"
5.42mm
5.48
32"
60-70-80gr OR 80-90-100gr
0.800"
5.48mm
5.80
32"
60-70-80gr OR 80-90-100gr
0.750"
5.50mm
5.94
32"
80-90-100gr
0.700"
5.58mm
6.17
32"
80-90-100gr
0.650"
5.60mm
6.42
32"
80-90-100gr
0.600"
5.71mm
7.09
32"
80-90-100gr or 100-110-120gr
0.550"
5.77mm
7.47
32"
80-90-100gr or 100-110-120gr
0.500"
5.88mm
8.00
32"
80-90-100gr or 100-110-120gr
0.450"
5.99mm
8.63
32"
80-90-100gr or 100-110-120gr
0.400"
6.13mm
9.47
32"
80-90-100gr or 100-110-120gr
With the carbon shafts and arrow under the brand Penthalon, Bearpaw has broken the mold to realize their ideas concerning design and quality. They have adapted arrow weight, precision and length of these carbon shafts to the needs of traditional archery. This is a robust shaft for daily use in training, competition and hunting. Especially in traditional archery, many archers appreciate a natural look.
The wood finish of our Timber Stick looks outrageously real and it comes very close to a wooden arrow!
Specifications Penthalon TimberStick shaft:
Available spine values: 400, 500, 600, 700, 800 and 900
Straigthness: +/- 006
Quality: 100% carbon
Look: Timberwood design
Delivery scope: carbon shaft

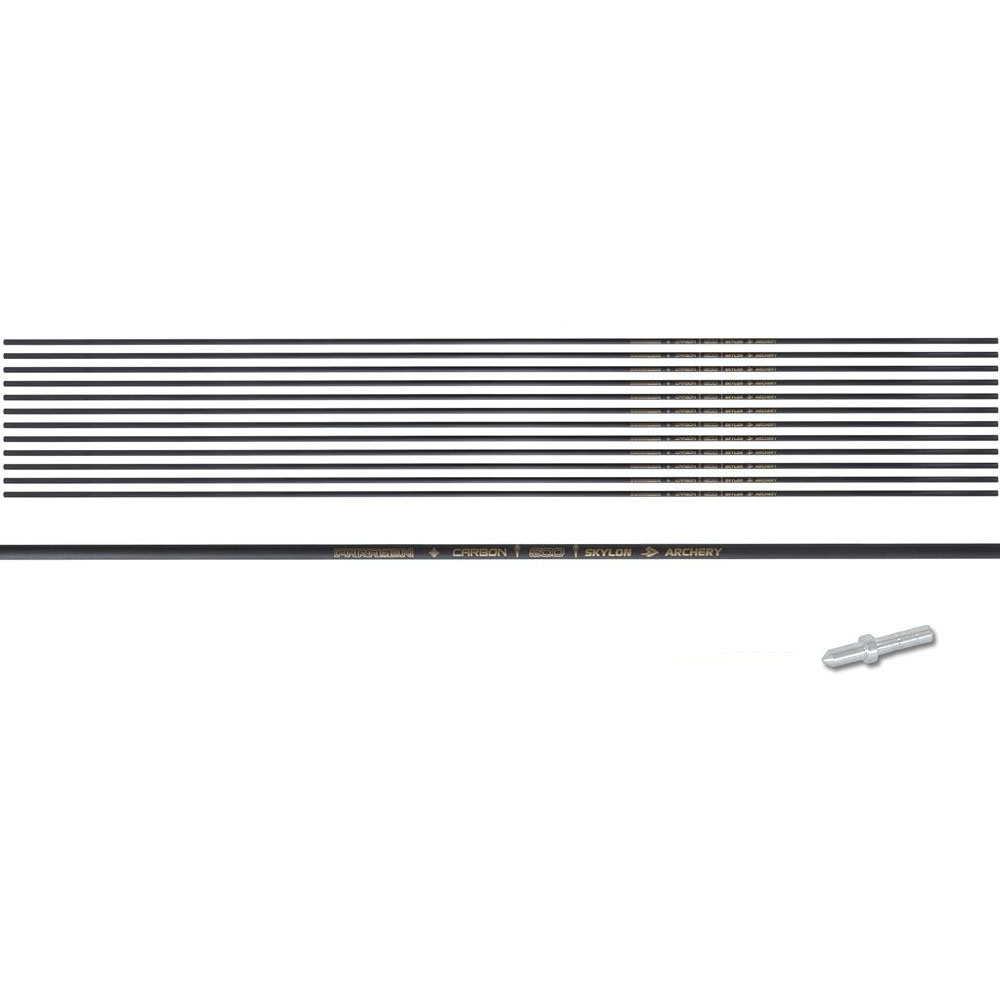

This 'g-size' shaft by Skylon (4.2 mm inner diameter) is ideal for the archer looking for more than just ready made arrows. These arrows come 32 inches shaft length in every spine, meaning even people with long draw lengths and low draw weight can assemble a great shooting arrow. The fact that they are this long also means that you can cut them to size, or let us cut them to size, so you can use them with a clicker for a specific draw length. The included pin is intended to protect the shaft when you are shooting small groups and busting nocks. Specifications Skylon Carbon Radius Shaft:
Spines: 2000, 1800, 1500, 1300, 1100, 900, 850, 800, 750, 700, 650, 600, 550, 500, 450, 400
Inner diameter: 4.2mm
Material: 24-ton carbon
Pin insert included
SPINE
OUTSIDE DIAMETER
GRAIN PER INCH
LENGTH
RECOMMENDED POINT
2.000"
4.96mm
3.60
32"
50gr
1.800"
5.00mm
3.89
32"
50gr
1.500"
5.05mm
4.00
32"
60-70-80gr
1.300"
5.18mm
4.16
32"
60-70-80gr
1.100"
5.22mm
4.64
32"
60-70-80gr
1.000"
5.32mm
4.90
32"
60-70-80gr
0.900"
5.36mm
5.34
32"
60-70-80gr
0.850"
5.42mm
5.48
32"
60-70-80gr or 80-90-100gr
0.800"
5.48mm
5.80
32"
60-70-80gr or 80-90-100gr
0.750"
5.50mm
5.94
32"
80-90-100gr
0.700"
5.58mm
6.17
32"
80-90-100gr
0.650"
5.60mm
6.42
32"
80-90-100gr
0.600"
5.71mm
7.09
32"
80-90-100gr or 100-110-120gr
0.550"
5.77mm
7.47
32"
80-90-100gr or 100-110-120gr
0.500"
5.88mm
8.00
32"
80-90-100gr or 100-110-120gr
0.450"
5.99mm
8.63
32"
80-90-100gr or 100-110-120gr
0.400"
6.13mm
9.47
32"
80-90-100gr or 100-110-120gr
Delivers accuracy and durability at a price that’s affordable on any budget
Straightness tolerance: ± .006″
Includes Nocks & inserts
The shaft length depends on the arrow spine:
Spine:
Length:
300
32 inch
400
32 inch
500
30 inch
600
30 inch
700
30 inch
The Gold Tip Hunter is based on the shaft by which Gold Tip established itself worldwide. Amazingly strong and light shafts!
These shafts are made with Gold Tips’ Smart Carbon Technology; sustainable and completely straight! You don’t have to worry one bit about the quality, Gold Tip always delivers qualitative products.
Features
Material: carbon
Available spine values: 340 – 400 – 500
Straightness: +/- .006″
Weight: 2 gr.
Comes standard with:
– GT Nock
– Accu-lite insert (340-400 spines)
– Accu-lite insert Small (500 spine)
Specifications
Size/spine
GPI
Max. length
I.D.
340 (.340″)
8.9
32″
.246″
400 (.400″)
8.2
32″
.246″
500 (.500″)
7.3
30″
.246″
The Penthalon Slim Line series are shafts of excellent performance. The smooth and accurate flight of these arrows are truly great; thinner shafts stabilize faster during flight and lose less energy in the air. Because of the relatively thick exterior, the arrow is firm and yet has sufficient weight, a perfect combination!
Features
Available spine sizes: 400, 500, 600, 800, 1000, 1300 and 1600
Straightness: +/- 003
Quality: 100% carbon
Looks: Carbon black
Delivery includes: Shaft (nocks, insert and points can be ordered separately)
Find out all technical specifications in the product image table.
The Penthalon Hunter Extreme has three important features:
Extreme durability
Extreme precision
Extreme power
The greatest performance combined with quality. The design of this shaft just shows ultimate class. With its cross weave K3 carbon fabric, this shaft is at the top of carbon shafts. The Hunter Extreme has been put through extreme tests with maximum circumstances by many well-known, successful archers. They were all impressed by the features the shaft has to offer.
Specifications:
Available spine sizes: 300, 350, 400, 500, 600 and 800
Straightness: +/- 003
Quality: 100% K 3 Carbon
Look: cross weave Carbon
Nocks and insert not included
Find out even more about the Penthalon Hunter Extreme with all its technical details here:
Video Player

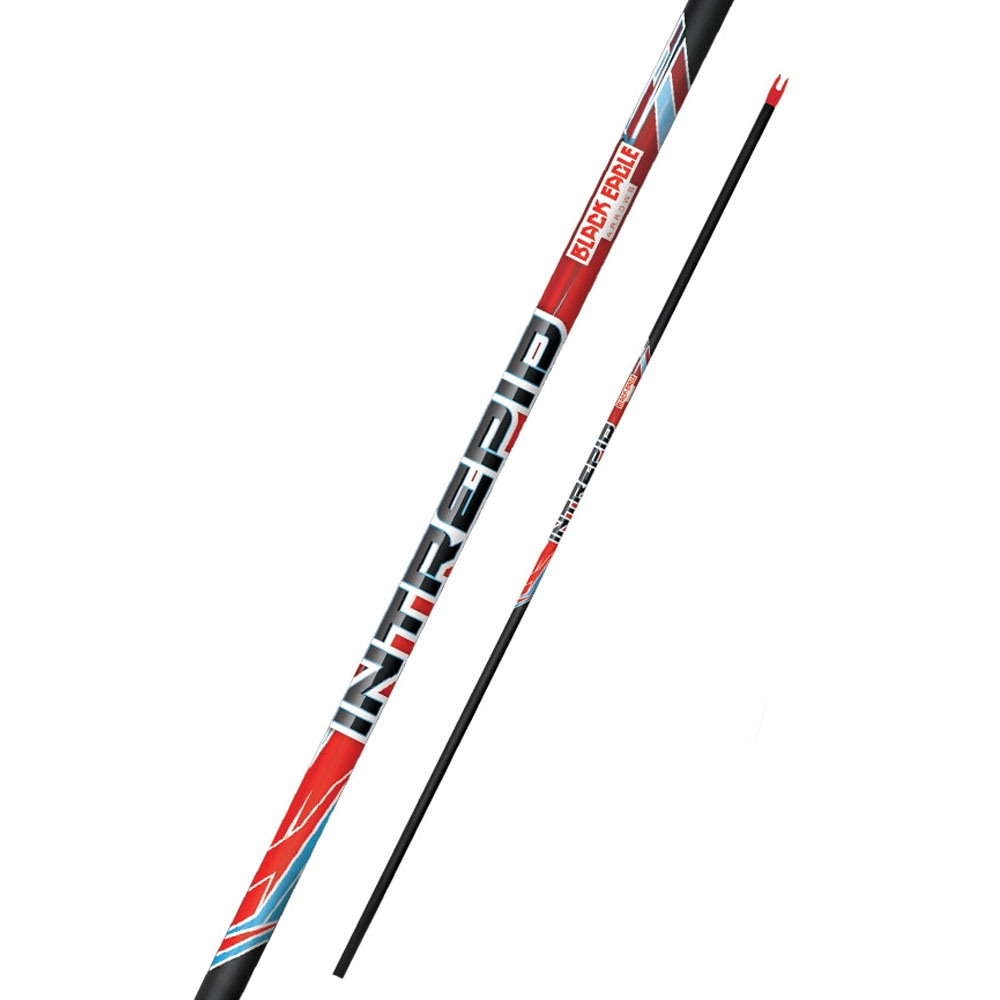

The intrepid arrow was designed for Recurve target archers. It is an affordable arrow with Black Eagle Quality designed for the Novice and Seasoned shooters alike.
Great performing, great value beginner arrow.
Wide range of spines to suit a variety of uses.
Durable carbon construction.
Generous length, ideal for longer drawlengths and extra safety.
Quality components available - including adjustable weight points for increased tuning opportunities.
Comes with pre-installed small groove nock.
Material: Carbon
Diameter: 0.165 (inside diameter)
Grains Per Inch: 8.13 (500 spine)
Straightness Tolerance: 00.6
Available Spines: 500 - 1400
Uncut length (approx): 32"
Included components: Small groove nock
Optimal for: Beginner archers
Entry level carbon shafts for Traditional archers. With a length of 33inch perfect for shooters with a long draw length. Inserts and nocks (Skylon S-size) are included but not installed.Specifications Skylon Carbon Frontier Shafts:
Material: Full catbonFull length: 33inch
Straightness: +/- .006"
Nock: Large groove nock (S-size)
Insert: .244 (S-size)
Spine
Outer Diameter
Grain per inch
Shaft length
800
6.85mm
4.20
33 inch
700
7.00mm
5.12
33 inch
600
7.05mm
5.58
33 inch
500
7.12mm
5.80
33 inch
400
7.35mm
7.33
33 inch
This Gamegetter arrow offers high accuracy and quiet shooting. It is a popular aluminium model that comes with a pre-installed Super Nock and RPS insert.
Specifications of the Easton Shaft XX75 Gamegetter:
Pre-installed Super Nocks
RPS inserts – included
7075-T9 aluminium
Straightness: ± .003″
Spine
Shaft weight(Grain per inch)
Length (inches)
Super Uni Bushing(Grain)
RPS Point diameter (screw in)
500 (2016)
10.6
32
3
11/32
400 (2117)
12.0
31.5
5
11/32
340 (2315)
11.7
32
9
11/32
300 (2317)
13.3
32
9
11/32

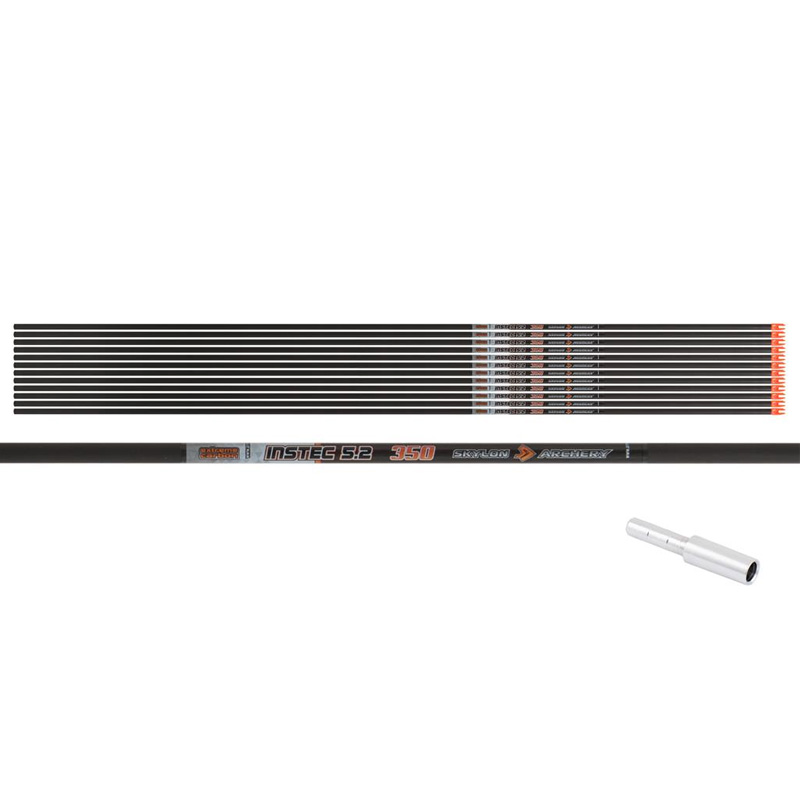

These Skylon Carbon Instec shafts have an inner diameter of 5.2mm and are made of 24T carbon. With their small diameter, these shafts are ideally suited for outdoor or 3D use. The ID5.2 components such as nocks and inserts fit on these shafts, but various parts from other brands can also be used.Nocks and inserts are included.Points not included.Specifications Skylon Carbon Instec Shafts:Material: 24-Ton CarbonInnerdiameter: 5.2mm / .204inch (X-size)Straightness: .006inchMaximal Shaftlength: 33inchPoint diameter: 9/32
SpineOutside DiameterGPILength
700
6.21mm
5.24
33"
600
6.36mm
6.19
33"
500
6.46mm
6.80
33"
400
6.65mm
8.16
33"
350
6.73mm
8.70
33"
300
6.89mm
9.44
33"
Easton’s exclusive tapered technology allows a bigger line-catcher arrow at lower bow and/or point weight. Easton’s new RX-7 series 7178 aluminum arrow shafts incorporate a precision rear taper – effectively letting recurve shooters shoot a bigger arrow at a lower bow weight, and also with less point weight, while maintaining maximum shaft diameter for higher scoring potential. Proven in the 2018-19 competition season by some of the top archers in the world, including Team USA’s Brady Ellison and Jack Williams, the RX-7 is based on the same proven design principle as Easton’s X10 and A/C/E shafts, with the precision flexible, forgiving rear taper. This design element drops the dynamic spine of the arrow shaft by up to one full size, which allows the use of a larger diameter and lighter point. RX-7 shafts are supplied with Easton Super-UNI bushings, which accept available Easton Super Nocks, 3D-Super Nocks, and the popular size 19 Beiter nock.
The top-grade Easton aluminium target arrow! This arrow has an outside diameter of 9,3 mm which is the maximum size allowed. The arrow comes complete with feathers, point and nock. You can upgrade the arrow with by example a Competition Pro point and/or a Beiter Hunter nock.
Features Easton X23:
Several spines
Top-grade indoor arrow
These extremely thin shafts Carbon Paragon from Skylon are the perfect basis for the avid and advanced shooter looking for more speed and consistency when shooting. With a diameter of only 5.25mm on the stiffest spine and a straightness tolerance of 0.0015 inch, these shafts are the right choice. Shooting smaller groups than before is a lot easier with these shafts.
Specifications Skylon Carbon Paragon Schaft:Material: 40-TON CarbonInner Diameter: 3.2 mm / 0.125 inchStraightness: .0015 inchSpines: 350 - 400 - 450 - 500 - 550 - 600 - 650 - 700 - 750 - 800 - 850 - 900 - 1000
SPINEOUTSIDE DIAMETERGRAIN PER INCHLENGTHRecommended POINT
1.000"
4.45mm
4.70
30"
60-70-80gr
0.900"
4.50mm
4.81
30"
60-70-80gr
0.850"
4.55mm
4.94
30"
80-90-100gr
0.800"
4.59mm
5.06
31"
80-90-100gr
0.750"
4.63mm
5.31
31"
80-90-100gr
0.700"
4.67mm
5.55
31"
80-90-100gr
0.650"
4.73mm
5.83
31"
80-90-100gr
0.600"
4.78mm
6.10
32"
100-110-120gr
0.550"
4.84mm
6.50
32"
100-110-120gr
0.500"
4.90mm
6.90
32"
100-110-120gr
0.450"
5.04mm
7.42
32"
100-110-120gr
0.400"
5.17mm
7.93
32"
100-110-120gr
0.350"
5.25mm
8.47
32"
100-110-120gr
This incredibly robust shaft is developed by Bearpaw in collaboration with Byron Ferguson. Thanks to the weight of this Heavy Hunter shaft, the arrow has the same flight pattern as a wooden arrow. This makes it ideal in use for traditional shooters!
And what does the world famous’ shooter think of it? “Unbelievably tough!” – Byron Ferguson
Features
Available spine sizes: 320, 400, 500 and 600
Length: 32 inch
Straightness: +/- 006
Quality: 100% carbon
Looks: Spliced timber optics (screen printing)
Delivery includes: Shaft (nocks, insert and points can be ordered separately)
Find out all technical specifications in the product image table.
The Skylon Bruxx arrows are constructed from 24-TON Carbon with an 8.0mm internal diameter this arrow is suitable for compound bows to use for target and 3-D shooting.
Material: 24-TON Carbon
Inner Diameter: 8.0mm / .315"
Straightness Tolerance: ±.0015"
Length: 33 inch
Includes pin insert
The Black Eagle Vintage® shaft is the first of its kind on the market. Many serious traditional archers, and compound archers, are looking for a high quality wood grain carbon shaft. The Duracoat wood grain overlay-finish allows for refletching and cresting. Vintage shafts are straightness sorted, spine matched, and weight matched to ensure the quality and toughness that you have come to expect. The extra long length of 34 inches makes it suitable for archers with extra long drawlengths.
Uncut Length (Approx) 34.00 inch
Weight Tolerance 1.00 ± grains
Material Carbon
Series Medium
Included Accessories Insert and nock
Straightness 0.0050 inch
Optimal For Traditional/ Field/ Hunting and 3D
These ultra thin Performa shafts from Skylon are the ideal upgrade for the more advanced archer. With an inner diameter of 3.2mm, this shaft has an outer diameter of 4.45 at the weakest spine (1000) and 5.25mm at the stiffest spine (350). This ensures minimal influence of the wind, making it easier to shoot smaller groups, especially at long distances.Various spare parts are available separately for these Skylon Carbon Performa shafts. For example, the shafts are equipped with an ID3.2 pin adapter to which the pinnocks of, for example, Skylon or Easton fit. In addition, there are different points available which can be ordered per spine for a perfect fit. It is also possible to provide the arrows with a Skylon Collar, also called a protector hat, which provides extra strength at the front and/or back.Specifications Skylon Carbon Performa Shafts:Material: 40-TON CarbonInner Diameter (ID): 3.2 mm / 0.125inchStraightness: ±0.006 inch
SpineOuter DiameterGPILengthPoint Weight
1.000"
4.45mm
4.70
30"
60-70-80gr
0.900"
4.50mm
4.81
30"
60-70-80gr
0.850"
4.55mm
4.94
30"
80-90-100gr
0.800"
4.59mm
5.06
31"
80-90-100gr
0.750"
4.63mm
5.31
31"
80-90-100gr
0.700"
4.67mm
5.55
31"
80-90-100gr
0.650"
4.73mm
5.83
31"
80-90-100gr
0.600"
4.78mm
6.10
32"
100-110-120gr
0.550"
4.84mm
6.50
32"
100-110-120gr
0.500"
4.90mm
6.90
32"
100-110-120gr
0.450"
5.04mm
7.42
32"
100-110-120gr
0.400"
5.17mm
7.93
32"
100-110-120gr
0.350"
5.25mm
8.47
32"
100-110-120gr
The X7 Eclipse is the world wide standard. Perfectly spined, completely straight and a steady and consistent weight. It is with great reason that the X7 Eclipse is extremely popular with many archers, both target and 3D!
Specifications7178-T9 Aerospace alloyHard-anodized finishStraightness: ± .001Weight tolerance: ± .3/4%Strength (PSI): 105,000
Nocks and points are not included.

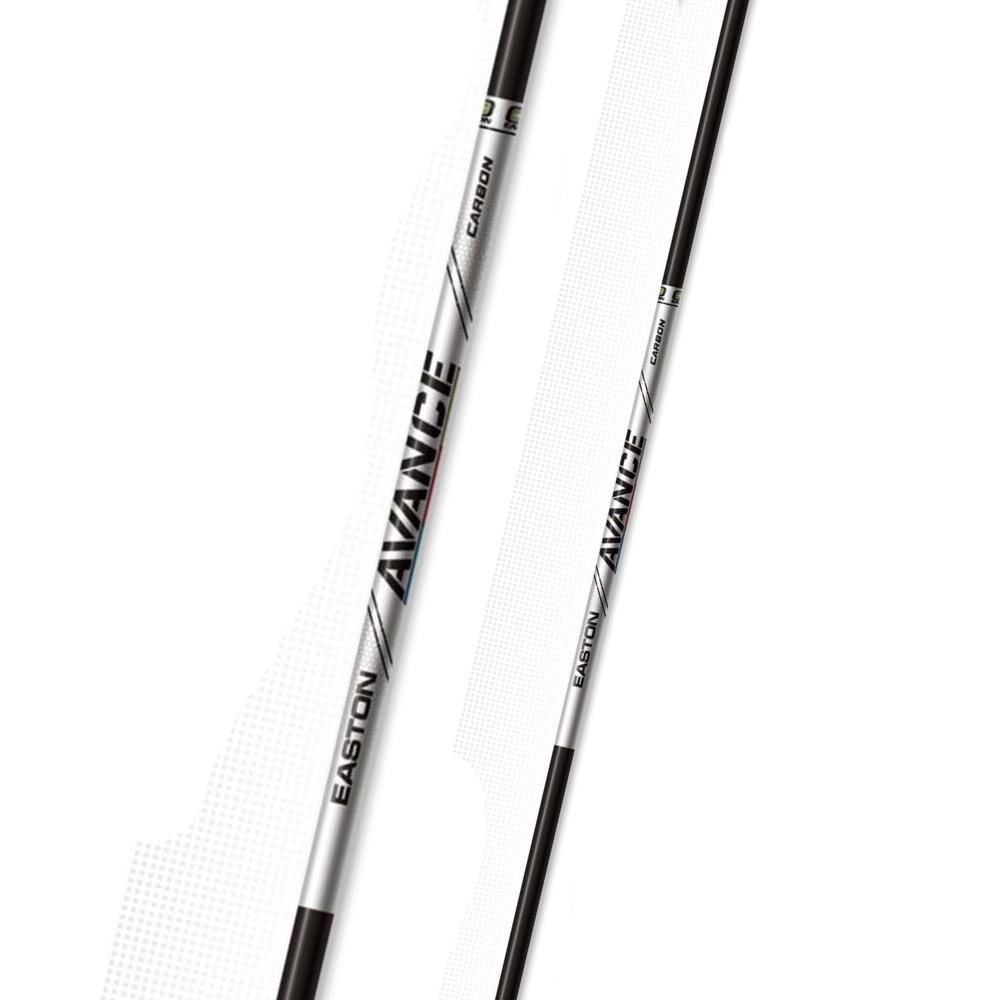

Easton’s new Avance and Avance Sport 4MM arrows are an all-carbon target arrow intended to fit in the middle of the outdoor target archery market. Avance and Avance Sport share the same carbon construction and are then sorted into by straightness. The Avance has a +/- .0025” straightness, ideal for intermediate level archers; and the Avance Sport carries a +/- .005” straight spec, ideal for novice level archers looking for lightweight performance in a less expensive arrow.
The Avance series is available in a wide selection of spine sizes that cover tuning ranges for recurve and compound archers over a broad range of bow styles, draw lengths and poundages. The durable, all-carbon construction of the Avance nets an arrow that is lighter than previous Easton offerings, allowing for top level performance and greatly benefiting the entry-level to intermediate-level target archer. Accompanying the Avance is a full line of glue-in target points, pin inserts, pin nocks and push in nocks.
Specs Easton Avance Sport:
Material: 100 % Carbon Construction
Diameter: 4 mm
Straightness: +- .0025
Weight tolerance: +- 1 grain
Design: Parallel design
Components sold separately
SpineMax LengthPoint weight4MM ML Point / 4MM pin
34032.25 inch100-120 grain#4
40033.00 inch100-120 grain#4
45032.75 inch100-120 grain#4
50032.50 inch100-120 grain#4
55032.25 inch90-110 grain#3
60032.00 inch90-110 grain#3
66031.75 inch90-110 grain#3
73031.25 inch90-110 grain#3
81031.00 inch70-90 grain#2
90030.25 inch70-90 grain#2
100030.00 inch70-90 grain#2
115029.25 inch70-90 grain#2
140029.00 inch60-80 grain#1
160028.75 inch60-80 grain#1
180028.50 inch60-80 grain#1
200028.25 inch60-80 grain#1
Gold Tip’s Traditional Series combines the elegant look of classic wood-grained cedar with the proven performance and durability of 100% carbon construction.
Features
Straightness: ± .003″
Weight tolerance: ±2 grains
Comes with GT Nock and Accu-lite insert (12.1 gr.)
Specifications
Spine
GPI
Max Lengte
Inner diameter
340 (.340″)
10.5
32″
.246″
400 (.400″)
9.3
32″
.246″
500 (.500″)
8.6
32″
.246″
600 (.600″)
7.8
30″
.246″
The Skylon Precium Shafts are ultra thin 3.2mm carbon shafts suitable for the avid and advanced shooter. With an outer diameter of only 5.25mm on the stiffest spine (350), these shafts have little wind problems, making shooting smaller groups at long range a lot easier. Various parts are available separately for these Skylon Carbon Precium shafts. For example, the shafts are equipped with an ID3.2 pin adapter to which the pin nocks of, for example, Skylon or Easton fit. In addition, there are different points available which can be ordered per spine for a perfect fit. It is also possible to provide the arrows with a Skylon Collar, also called a protector hat, which provides extra strength at the front and/or back.
SpineOuter diameterGPILengthPoint weight
1.000"
4.45mm
4.70
30"
60-70-80gr
0.900"
4.50mm
4.81
30"
60-70-80gr
0.850"
4.55mm
4.94
30"
80-90-100gr
0.800"
4.59mm
5.06
31"
80-90-100gr
0.750"
4.63mm
5.31
31"
80-90-100gr
0.700"
4.67mm
5.55
31"
80-90-100gr
0.650"
4.73mm
5.83
31"
80-90-100gr
0.600"
4.78mm
6.10
32"
100-110-120gr
0.550"
4.84mm
6.50
32"
100-110-120gr
0.500"
4.90mm
6.90
32"
100-110-120gr
0.450"
5.04mm
7.42
32"
100-110-120gr
0.400"
5.17mm
7.93
32"
100-110-120gr
0.350"
5.25mm
8.47
32"
100-110-120gr
the Skylon Preminens is a very slim shaft for the advanced shooter. With only 5.25mm diameter for the stiffest spine and a mind boggling 4.73mm for the weakest, you'll easily shoot good groups in the wind and on longer distances. These shafts also have a very small straightness tolerance to ensure you of a well matches set of arrows. The inner diameter is 3.2mm, so all of Skylons 3.2mm accessories are fit for use with these shafts.
Specifications Skylon Preminens:
Spines: 650, 600, 550, 500, 450, 400, 350.
Inner diameter: 3.2mm
Material: 40-ton carbon
Includes a pin to fit nocks on.
SPINE
OUTSIDE DIAMETER
GRAIN PER INCH
LENGTH
Recommended POINT
0.650"
4.73mm
5.83
31"
80-90-100gr
0.600"
4.78mm
6.10
32"
100-110-120gr
0.550"
4.84mm
6.50
32"
100-110-120gr
0.500"
4.90mm
6.90
32"
100-110-120gr
0.450"
5.04mm
7.42
32"
100-110-120gr
0.400"
5.17mm
7.93
32"
100-110-120gr
0.350"
5.25mm
8.47
32"
100-110-120gr
Easton’s new Avance and Avance Sport 4MM arrows are an all-carbon target arrow intended to fit in the middle of the outdoor target archery market. Avance and Avance Sport share the same carbon construction and are then sorted into by straightness. The Avance has a +/- .0025” straightness, ideal for intermediate level archers; and the Avance Sport carries a +/- .005” straight spec, ideal for novice level archers looking for lightweight performance in a less expensive arrow.
The Avance series is available in a wide selection of spine sizes that cover tuning ranges for recurve and compound archers over a broad range of bow styles, draw lengths and poundages. The durable, all-carbon construction of the Avance nets an arrow that is lighter than previous Easton offerings, allowing for top level performance and greatly benefiting the entry-level to intermediate-level target archer. Accompanying the Avance is a full line of glue-in target points, pin inserts, pin nocks and push in nocks.
Specs Easton Avance Sport
Material: 100 % Carbon Construction
Diameter: 4 mm
Straightness: +- .005
Weight tolerance: +- 1 grain
Design: Parallel design
Components sold separately
SpineMax LengthPoint weight4MM ML Point / 4MM pin
34032.25 inch100-120 grain#4
40033.00 inch100-120 grain#4
45032.75 inch100-120 grain#4
50032.50 inch100-120 grain#4
55032.25 inch90-110 grain#3
60032.00 inch90-110 grain#3
66031.75 inch90-110 grain#3
73031.25 inch90-110 grain#3
81031.00 inch70-90 grain#2
90030.25 inch70-90 grain#2
100030.00 inch70-90 grain#2
115029.25 inch70-90 grain#2
140029.00 inch60-80 grain#1
160028.75 inch60-80 grain#1
180028.50 inch60-80 grain#1
200028.25 inch60-80 grain#1
The new generation of Penthalon Slim Line arrows convinces with their quality and precision. The Bearpaw Slim Line arrows are impressive with their flat trajectory and accuracy. Thin arrows stabilize faster and lose less energy in the stabilization phase. The super stable thick walls of the Slim Line carbon shafts ensures the necessary arrow weight and the resilience of these great carbon shafts.
The Slim Line Bamboo is virtually indistinguishable from a natural bamboo shaft. Even the nodes are represented in a deceptively real fashion. The Bamboo Hunter is a jewel in every quiver!
Specifications:
Available spine values: 400, 500, 600, 800, 1000, 1300 and 1600
Length: All shafts 32 inches
Straightness: +/- 006
Quality: 100% carbon
Look: bamboo finish (screen print)
Delivery scope: only carbon shaft (nocks, inserts and points must be ordered separately)
The Penthalon Traditional Bamboo is a qualitative carbon shaft of Bearpaw. All products of Bearpaw’s Traditional range are designed to maximize fun and get the most out of your arrow, with a focus on high quality and reliability.
The appearance of these carbon arrows are difficult to distinguish from real bamboo shafts.
Features
Available spine sizes: 350, 400, 500, 600 and 800
Straightness: +/- 006
Material: 100% carbon
Bamboo printed
The Easton Jazz Purple is a sturdy aluminium shaft with a small diameter. These arrows are especially great for starting archers. With a straightness of ± .005″ you will definitely have great fun!
Specifications
Spine
Weight
Spine @ 28″ Span
Schacht lengte
Size nock
NIBB point
One Piece Bullet point
RPS insert
RPS Insert Point size
in GPI
Deflection in inches
in inches
in inches
in grains
in grains
in grains
in grains
1214
5.9
2.501
26.5
***G Nock***
–
45
–
–
1413
5.9
2.036
26
7/32
–
35
–
–
1416
7.2
1.684
27
7/32
46
52
–
–
1516
7.3
1.403
27.5
1/4
48
54
–
–
1616
8.4
1.079
28.5
1/4
56
63
–
–
1716
9.0
0.880
29
1/4
60
68
10
17/64
1816
9.3
0.756
30
9/32
63
74
12
9/32
1916
10.0
0.623
31
9/32
72
82
16
5/16
2016
10.6
0.531
32
5/16
80
90
20
5/16
The Easton XX75 Platinum Plus is a premium, aluminium arrow for all levels of recreational and competitive archery.
The 2315 spine Platinum Plus is not approved for World Archery competitions due to its large diameter!
Specifications XX75 Platinum Plus:
Different spine sizes available
7075-T9 alloy (also used in the aerospace industry)
Hard-anodized finish
Easton quality margin
Spine:
Max. length (inch)
1416
26.25
1516
26.75
1616
27.5
1716
29
1816
29
1913
31
1916
30
2013
32
2016
3031
2114
30
2213
30.5
The Dan McCarthy PS23 Premium Signature series shaft was developed personally by Dan, a multi-time IBO & ASA champion. No expense was spared when developing the tightest tolerance shafts available specifically for the highest levels of competition.
Straightness 0.001 inch
Weight Tolerance 1.00 ± grains
Uncut Length (Approx) 32.00 inch
Optimal For Indoor Target / 3D
Included Accessories Shafts only
Material 100% carbon
Series 23 Series
The Skylon Empros 23 arrows are constructed from 24-TON 3K Carbon with an 8mm internal diameter this arrow is suitable for compound bows to use for indoor and 3-D shooting.
Shaft length: 33 inch
Straightness: +/- 0.003"
Inner Diameter:8.0mm / .315"
Material: 24-TON 3K Carbon
Including Uni bushing for S-size nock
Specifications Black Eagle Outlaw Shafts:
Uncut Length (Approx) 34.00 inch
Weight Tolerance: 2.00 ± grains
Material: Carbon
Series: Medium
Included Accessories: Insert and nock
Straightness: 0.0050 inch
Optimal For: Traditional/ Field/ Hunting and 3D
The answer to consumer demand for a product that not only pushes the maximum allowable diameter for indoor World Archery/ FITA events, but is also durable enough to maintain pinpoint accuracy shot after shot into the notorious, arrow wrecking stramit targets that are so common at these events, Gold Tip brings to you the Nine.3 Max and Nine.3 Max. Built with Gold Tip's Smart Carbon® Technology for unmatched durability and straightness retention. Components sold separately.Specifications Gold Tip Nine.3 Max Plus Shaft:
Straightness 0.0025 inch
Weight Tolerance 0.50 ± grains
Uncut Length (Approx) 30.00 inch
Optimal For Indoor Target / 3D
Included Accessories Shafts only
Material 100% carbon
Series 23 Serie
The Gold Tip Traditional Classic is a thin but relatively heavy carbon shaft. With it’s weight and small diameter this shaft has a lot of kinetic energy. That in combination with the classic traditional looks makes this the choice of many traditional archers.
Comes with:
– Accu-Tough Nock
– Accu Tough InsertSpecifications
spine
GPI
Max Lengte
Inner diameter
340 (.340″)
12
32″
.204″
400 (.400″)
11.4
32″
.204″
500 (.500″)
9.8
32″
.204″
600 (.600″)
9
30″
.204″
Straightness: ± .006″
Weight tolerance: ±2 grains
SuperDrive 23 is the World Archery Maximum Compliant Diameter carbon arrow for compound shooters looking for success with indoor and 3D competition. A proven winner on the world indoor stage, Superdrive 23 is built to be the toughest, most accurate 23 diameter all-carbon shaft ever made by Easton. Available in three precision spine sizes to match competitive compound setups. Now available is the new Superdrive 23 adjustable point system for fine-tuning and optimizing balance and speed.
Straightness 0.002 inch
Weight Tolerance 0.50 ± grains
Uncut Length (Approx) 32.00, 33.25, 31.50 inch
Optimal For Indoor Target / 3D
Included Accessories Super UNI Bushing
Material High-modulus reinforced carbon fiber
Series 23 Series
These carbon shafts from Skylon are ideal for traditional use. With a length of 33 inches, it is also suitable for shooters with a long draw length. The inner diameter of 5.2mm is a standard size that fits components with a 5.2mm diameter (X-size) from various brands, which means that parts for these shafts are easily available. Nocks (Skylon X-size nock) and inserts are included. Features Skylon Carbon Ebony Shafts:
Material: Full carbonFull length: 33inch
Straightness tolerance: +/- .006"
Nock: Large groove nock (X-size)
Insert: .204" / 5.2mm (X-size)
Spine
Outside diameter
Grain per inch
Maximum shaft length
700
6.21mm
5.25
33 inches
600
6.36mm
6.19
33 inches
500
6.46mm
6.80
33 inches
400
6.65mm
8.16
33 inches
350
6.73mm
8.70
33 inches
