This arrow rest by Shibuya is one of the strongest arrow rest on the market. Suitable for both left- and right handed bows. The DLC (diamon-like-carbon) support arm is in height and width adjustable.
Features Shibuya Rest Ultima:
Suited for both left and right
Adjustable in height and width
High quality arrow rest
This Shibuya Dual Click sight is known as one of the best, if not the best sights for the intermediate archer.
The Shibuya Dual Click has been around since 1999 and even before that under a different name! This proven design has been an inspiration for many brands because of it’s solidity and usability. It comes with a sight pin and is available in both right- and left-handed models.
The CPX compound sight line has proven itself for years as a rock-solid visor and with the arrival of the CPX-III this topper has been improved even further.
Sight Scale Plates
Both sides of ULTIMA CPXIII’s elevation bar feature recessed metal sight scale plates. Each ULTIMA CPXIII includes a blank plate and reference scale. 8 double-sided sight scale plates, for a total of 16 scale options, are available sold separately. Printed sight tapes can be used on the blank plate supplied.
ZPE Systeem
ULTIMA CPXIII sights feature a revolutionary system eliminating backlash and play in the elevation adjustments: the ZPE system. A readjustable aluminum wedge, secured with Nord-Lock® washers, eliminates any gap between the threaded locking block and aperture block.
FLAT SHELF INDICATOR PIN
The new flat-shelf indicator pin on ULTIMA CPXIII sights is easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down!
TRIA-LOCK SYSTEM
Shibuya’s innovative Tria-Lock system keeps the scope rod approx. 1/2″ closer to the elevation bar than conventional target sights. This significantly reduces moment effected on the windage unit – a significant factor in development of play and faults!
The innovative new Tria-Lock system encloses the scope rod holder from three sides, keeping it perfectly aligned and without play to produce a rattle-free, zero-tolerance environment.
X-Lock System
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
Features Shibuya Ultima CPX III 400-6
Material: Aluminium and Carbon extension
Length extension: 6 inch
Adjustability: Micro-adjustment and quick-release.
Adjustment incrementes per revolution: 1/24 inch(+/- 1mm）
Adjustment incrementes per click: 1/480 inch(+/- 0.05mm）
2nd and 3rd AXIS adjustable
Threadsize scope: 10/32
Colors: Black, Blue, Red, Gun Metal Grey
Included assesories: Soft Sight Case, Offset Bracket, No.10-24 mount screws, adjustment washers, Hex Wrenches, 1.5mm／2mm／3mm
The CPX compound sight line has proven itself for years as a rock-solid visor and with the arrival of the CPX-III this topper has been improved even further.
Sight Scale Plates
Both sides of ULTIMA CPXIII’s elevation bar feature recessed metal sight scale plates. Each ULTIMA CPXIII includes a blank plate and reference scale. 8 double-sided sight scale plates, for a total of 16 scale options, are available sold separately. Printed sight tapes can be used on the blank plate supplied.
ZPE Systeem
ULTIMA CPXIII sights feature a revolutionary system eliminating backlash and play in the elevation adjustments: the ZPE system. A readjustable aluminum wedge, secured with Nord-Lock® washers, eliminates any gap between the threaded locking block and aperture block.
FLAT SHELF INDICATOR PIN
The new flat-shelf indicator pin on ULTIMA CPXIII sights is easy to adjust, closer to the sight tape surface than ever before, while still offering enough clearance for layered tapes. Both side pins are locked by a cap screw from the side, preventing accidental movements when locking them down!
TRIA-LOCK SYSTEM
Shibuya’s innovative Tria-Lock system keeps the scope rod approx. 1/2″ closer to the elevation bar than conventional target sights. This significantly reduces moment effected on the windage unit – a significant factor in development of play and faults!
The innovative new Tria-Lock system encloses the scope rod holder from three sides, keeping it perfectly aligned and without play to produce a rattle-free, zero-tolerance environment.
X-Lock System
Re-adjustable, zero-tolerance fit between the windage unit and sight frame. Super-slick and durable polyacetal resin guide spacers enclose the elevation rail, re-adjustable at the turn of a set screw. All parts field-adjustable and -replaceable!
Features Shibuya Ultima CPX III 400-9
Material: Aluminium and Carbon extension
Length extension: 9 inch
Adjustability: Micro-adjustment and quick-release.
Adjustment incrementes per revolution: 1/24 inch(+/- 1mm）
Adjustment incrementes per click: 1/480 inch(+/- 0.05mm）
2nd and 3rd AXIS adjustable
Threadsize scope: 10/32
Colors: Black, Blue, Red, Gun Metal Grey
Included assesories: Soft Sight Case, Offset Bracket, No.10-24 mount screws, adjustment washers, Hex Wrenches, 1.5mm／2mm／3mm
Sunshade for the back of the Shibuya Ultima Okulus Scope.
Features Shibuya Ultima Okulus Scope Back Sunshade
Glare from the sun or light can cause a distorted image on your lens and bubble, you can reduce this with a Sunshade. This Sunshade has special anti-reflection grooves to further reduce glare.
It is threaded for easy mounting on the Ultima Okulus Scope.
Weight: 8.2 grams
There is both a Sunshade for the front and back of the Ultima Okulus Scope available, see the schematic picture which you need.
Lens for the Shibuya Okulus Scope.
The advanced design of this lens combines superior ZEISS supplied glass, the latest ZEISS AR coating and ZEISS manufacturing technology. The result is an exceptionally bright lens.
The advanced ZEISS coating ensures a light transmission of 99.98% and hydrophobic (water repellent) properties. A separate oleophobic coating repels fingerprints, grease, dust and dirt and makes the lens easy to clean. This advanced coating, together with a higher degree of hardness, ensures improved durability.
Features Shibuya Feather Vision Okulus Verde Plus Lens
Size Diopter: 0.5 (4x) - 0.75 (6x) of 1.0 (8x)
Lens diameter: 32mm

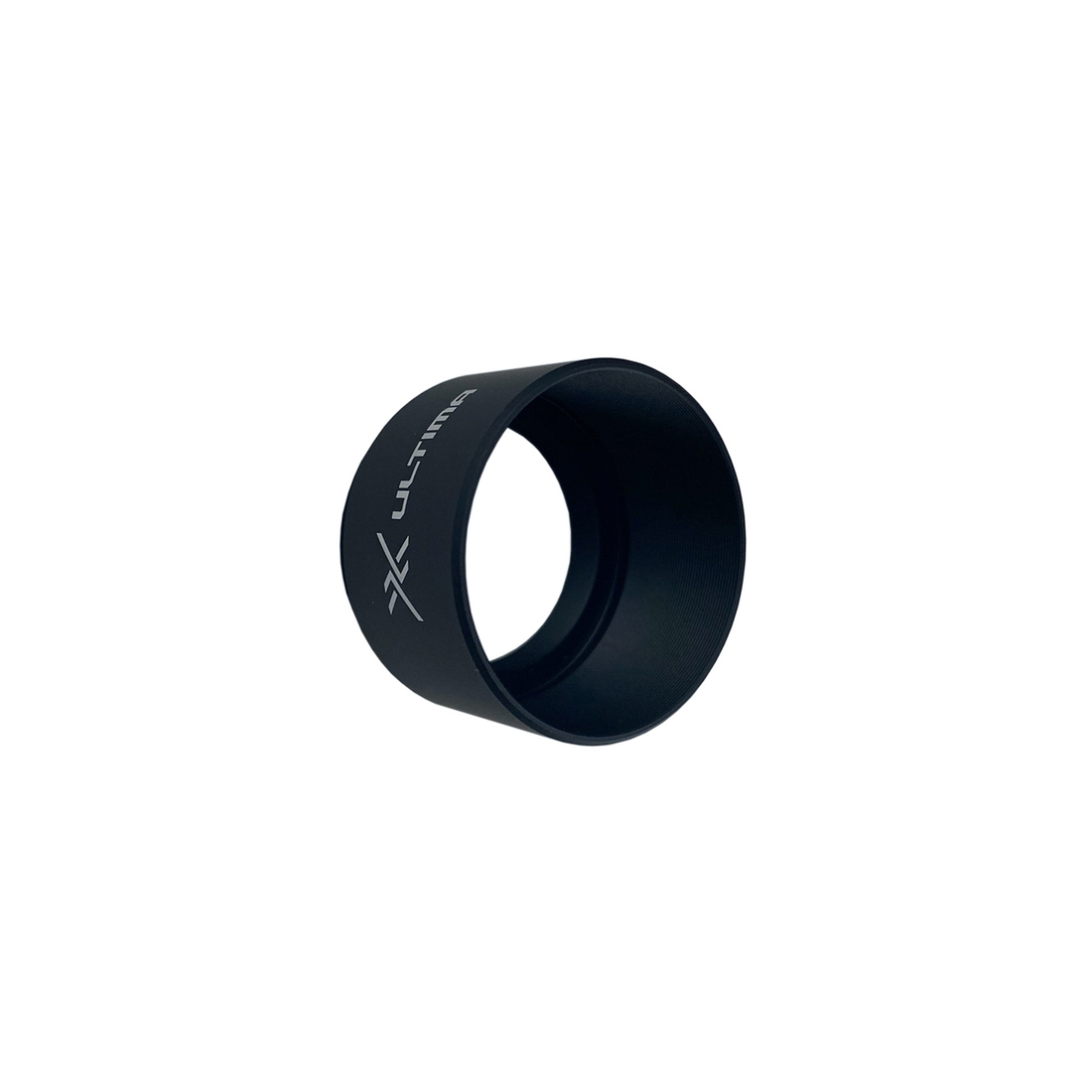

Sunshade for the front of the Shibuya Ultima Okulus Scope.
Features Shibuya Ultima Okulus Scope front Sunshade
Glare from the sun or light can cause a distorted image on your lens and bubble, you can reduce this with a Sunshade. This Sunshade has special anti-reflection grooves to further reduce glare.
It is threaded for easy mounting on the Ultima Okulus Scope.
Weight: 11 grams
There is both a Sunshade for the front and back of the Ultima Okulus Scope available, see the schematic picture which you need.

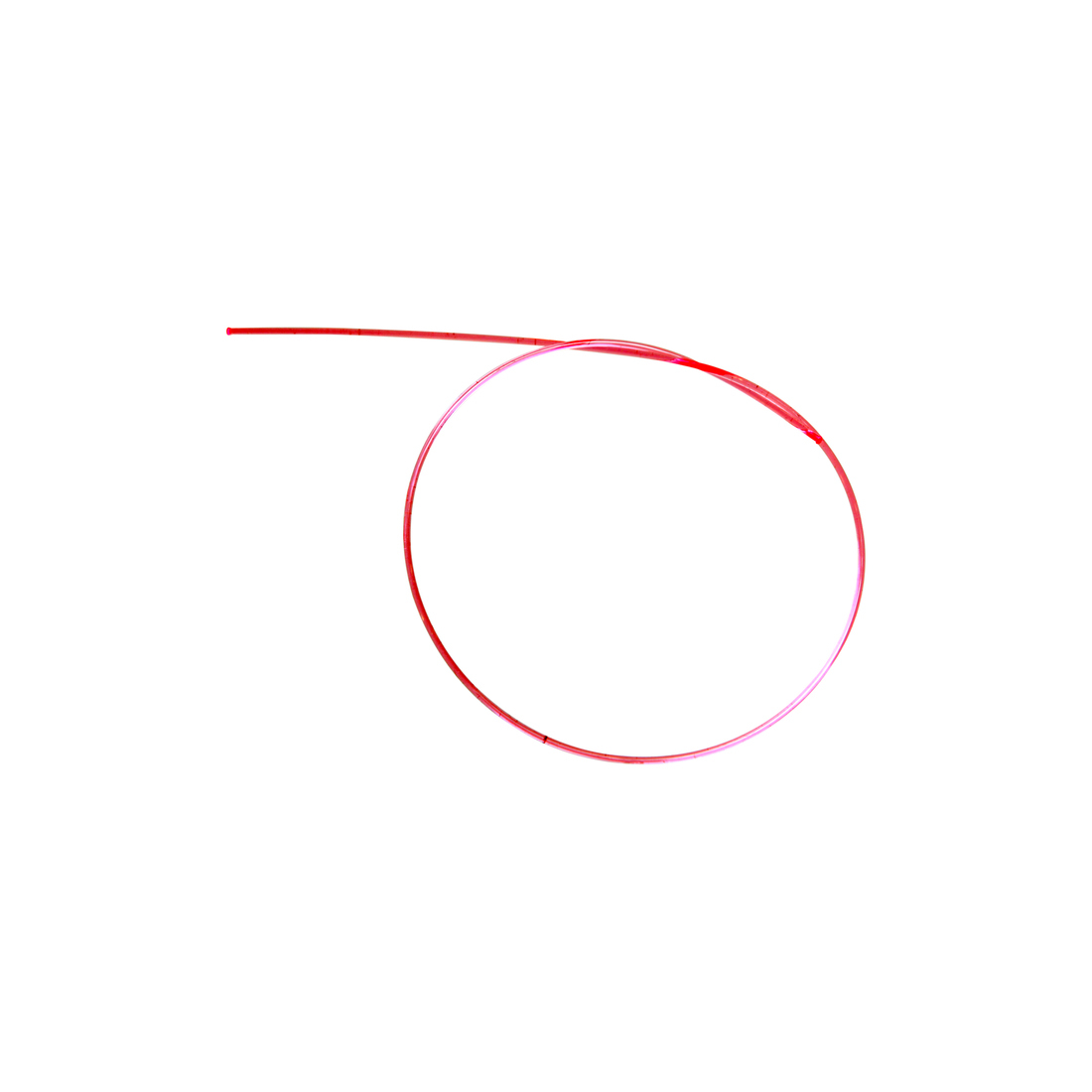

Fiber Kit for use with Shibuya Ultima Okulus scope.
Features Shibuya Ultima Okulus Fiber Kit
Available sizes: .010, .019 and .029
Including Mounting post

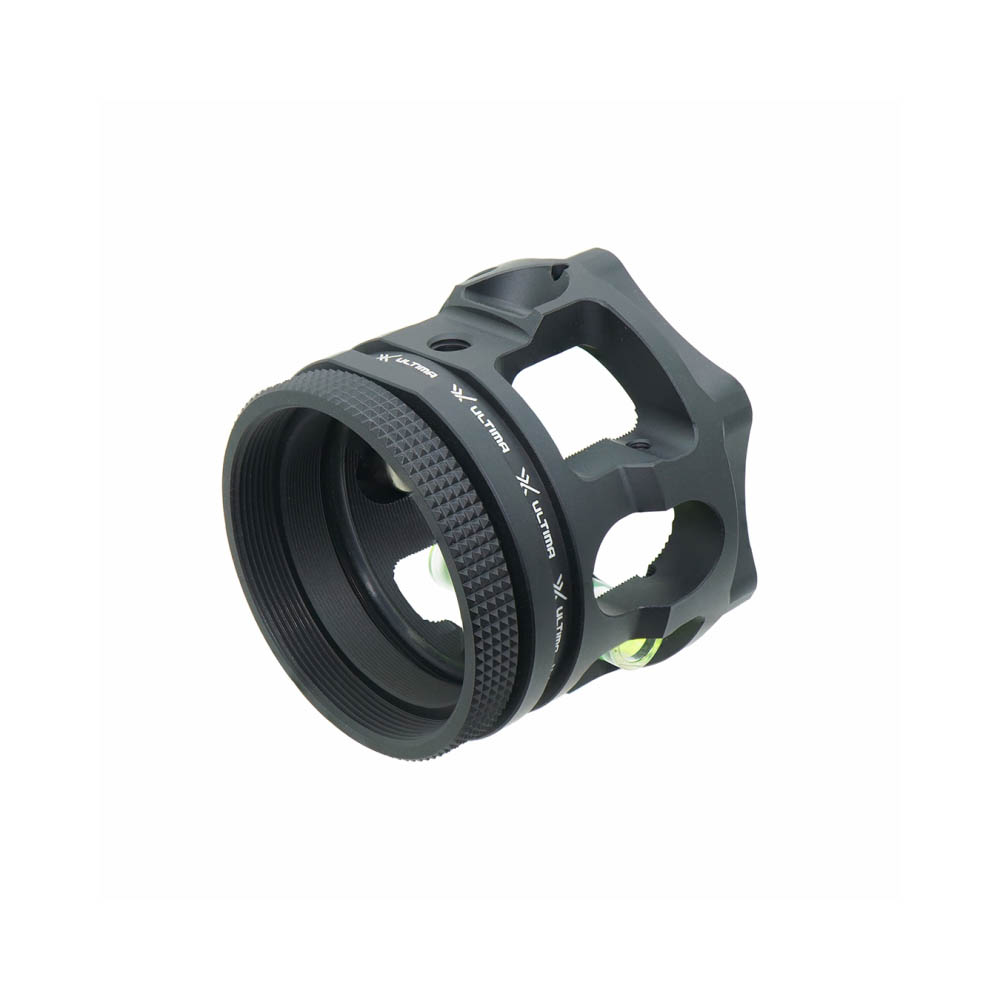

The Shibuya Okulus Scope is a very high-quality scope that has been developed with the greatest care for balance.
Thanks to the Gravity Shift technology, the scope can be placed forwards or backwards, so you move the center of gravity of the scope, ideal if you use accessories such as the sunshades or Decal.
Features Shibuya Ultima Okulus Scope Housing set
Material: Aluminium
Weight: 33.7 grams
Required lens diameter: 32mm
Equipped with anti-reflection grooves to reduce glare
Comes without accessories and lens, sold separately
Possible to place a sightlight
Comes with: GRAVITY SHIFT Balance Plate A & B, mounting hardware and Dual Color Dot Package
Lens for the Shibuya Okulus Scope.
The advanced Vitri™ design combines superior ZEISS supplied glass using specially designed and patented curved structures similar to the Verde Plus.
The Vitri™ is finished to the highest standards and comes complete with one of the best ZEISS anti-reflective coatings in the world. The use of complete internal processes from ZEISS guarantees the product of the highest quality.
The specific coatings used for the Vitri™ lens are exceptionally durable, easy to clean, hydrophobic (water repellent), oleophobic (oil repellent), anti-static and have a light transmission of 99.98%.
Features Shibuya Feather Vision Okulus Vitri Lens
Size Diopter: 0.5 (4x) - 0.75 (6x) of 1.0 (8x)
Lens diameter: 32mm
